Mengusung teknologi moge suzuki, bermesin Twin Cam atau DOHC, 4-valve, 4-stroke, 150cc, dilengkapi air-cooled/sacs (suzuki advanced cooling system) didukung transmisi 6-percepatan yang responsif. Berbagai pembaruan membuatnya tampil semakin garang.
|

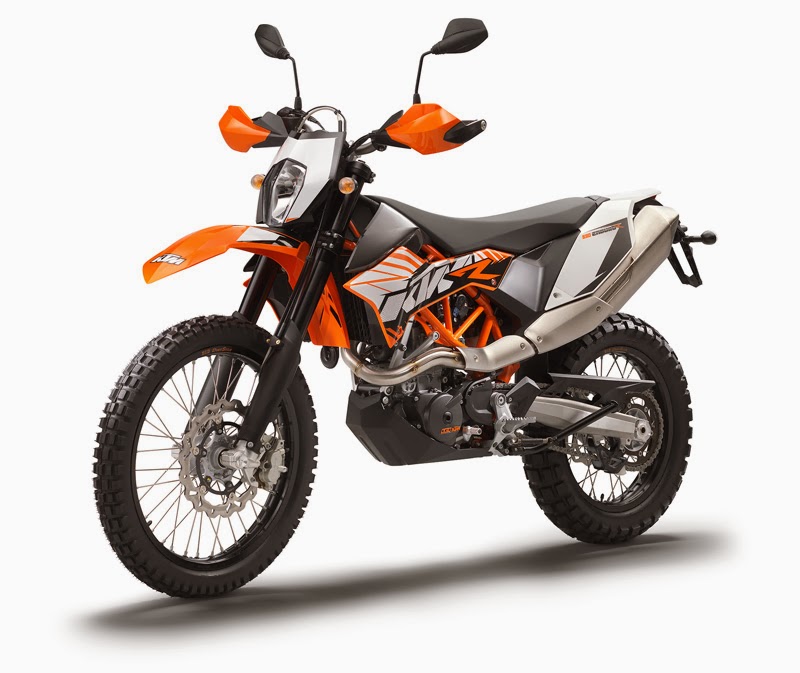

Design
|
Single-cylinder,
4-stroke, spark-ignition engine, liquid-cooled
|
|
Displacement
|
690 cm³
|
|
Bore
|
102 mm
|
|
Stroke
|
84.5 mm
|
|
Starting
aid
|
Electric starter, automatic
decompressor
|
|
Performance
|
49 kW (66 hp)
|
|
Transmission
|
6-speed, claw shifted
|
|
Engine
lubrication
|
Pressure circulation lubrication
with two rotor pumps
|
|
Primary
gear ratio
|
36:79
|
|
Secondary
gear ratio
|
15:45
|
|
Cooling
system
|
Liquid cooling system, continuous
circulation of cooling liquid with water pump
|
|
Clutch
|
APTC™ Anti-hopping clutch in oil bath / hydraulically operated
|
|
Ignition
system
|
Contactless, controlled, fully
electronic ignition system with digital ignition timing adjustment
|
|
Frame
|
Tubular
space frame made from chrome molybdenum steel, powder-coated
|
|
Fork
|
WP Suspension 4860 D48/26 MA
|
|
Shock
absorber
|
WP Suspension 4618 with Pro‑Lever linkage
|
|
Suspension
travel front
|
250 mm
|
|
Suspension
travel rear
|
250 mm
|
|
Brake
system front
|
Disc brake with two-piston brake
caliper, floating
|
|
Brake
system rear
|
Disc brake with single-piston
brake caliper, floating
|
|
Brake
discs - diameter front
|
300 mm
|
|
Brake
discs - diameter rear
|
240 mm
|
|
Chain
|
5/8 x 1/4” X‑Ring
|
|
Steering
head angle
|
63°
|
|
Wheel
base
|
1,504±15 mm
|
|
Ground
clearance (unloaded)
|
280 mm
|
|
Seat
height (unloaded)
|
910 mm
|
|
Total
fuel tank capacity approx.
|
12 l
Unleaded premium fuel (95 RON) |
|
Weight
without fuel approx.
|
138.5 kg
|
| FRAME | |
| Suspensi Depan | 37 mm telescopic fork |
| Suspensi Belakang | Uni-Trak Sistem dengan Model Gas-Shock dan 5-tingkat penyetelan |
| Rem Depan | Tunggal disc berdiameter 290 mm dengan kaliper dual-piston |
| Rem Belakang | Tunggal disc berdiameter 220 mm dengan kaliper dual-piston |
| Ban Depan | 110/70-17 M/C (54S) |
| Ban Belakang | 140/70-17 M/C (66S) |
| Panjang x Lebar x Tinggi | 2,010 x 715 x 1,110 mm |
| Jarak Poros Roda | 1,400 mm |
| Jarak ke Tanah | 785 mm |
| Berat | 172 kg |
| Kapasitas Bensin | 17 litres |
| ENGINE | |
| Tipe | 4-Langkah / Tak, Pendinginan Air, Dua Buah Sejajar |
| Maksimum Power | 23.5 kW {32 PS} / 11,000 RPM |
| Torsi Maksimum | 21.0 n-M {2.1 KGF-M} / 10,000 RPM |
| Volume Silinder | 249 cm3 |
| Sistem Bahan Bakar | Fuel Injection Sistem (o28 mm x 2) dengan katup Throttle Ganda |
| Sistem Pengapian | Digital |
| DRIVETRAIN | |
| Jumlah Transmisi | 6-speed, return shift |
